Square System 40x40

A plastic stop end for use in the end of tubes. This stop end cap can be used in either medium or heavy gauge tube. This is only a friction fit and for a more permanent fix an adhesive is recommended.

Hexagonal key. The allen key is the only tool required to tighten up a Pipeclamp fitting. The use of the dual ratchet Pipeclamp  is recommended to achieve the required torque.

Often used for mounting boards practically flush with tubes. Fixing holes suit a wide range of common mechanical and chemical masonry anchors. The tube cannot be joined within the fitting.

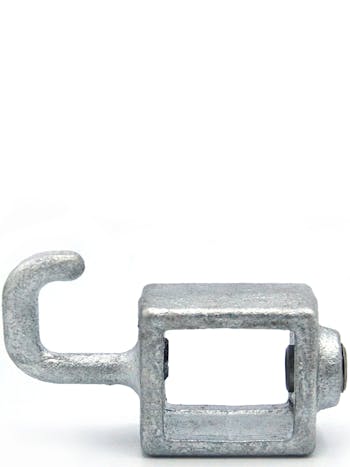

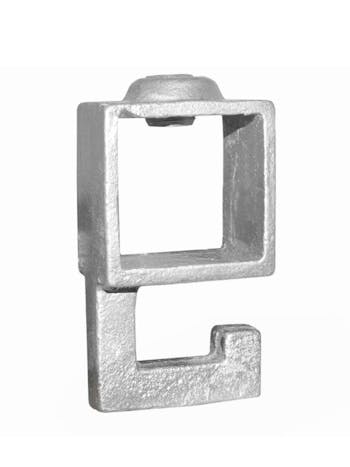

Straight hook. Used to locate chains across openings. Not ideal for permanent chain location. Recommended that one end of the chain is fixed using a Key Clamp and held in place with a nut and bolt.

Chain hook. Used to locate chains across openings. Not ideal for permanent chain location. Recommended that one end of the chain is fixed using a Key Clamp and held in place with a nut and bolt.

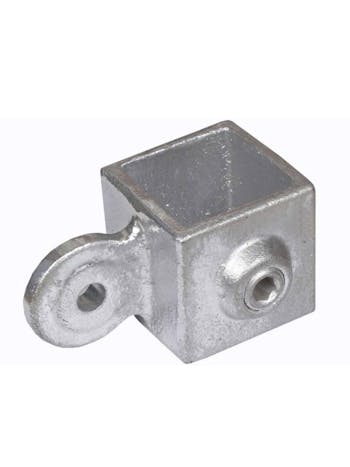

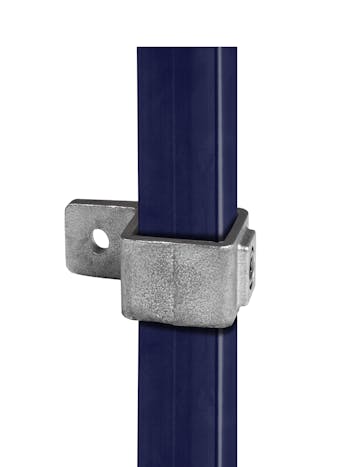

Key Clamp Single male fitting with only 1 lug.

Often used for mounting boards practically flush with tubes. Fixing holes suit a wide range of common mechanical and chemical masonry anchors. The tube cannot be joined within the fitting.

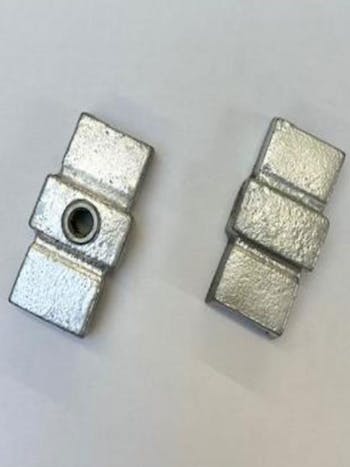

Expanding internal connector for joining sections of tube, or other DDA fittings as and when required.

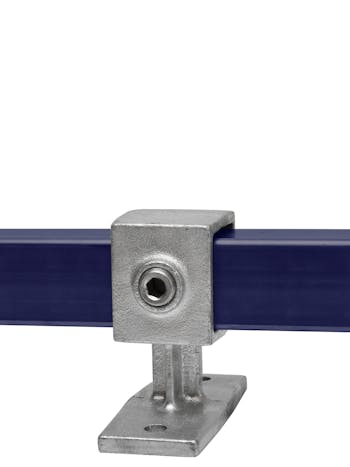

Wall mounting bracket for handrails. Can also be used to tie back structures to wall or to hold kicking plates on a guardrail. This Key Clamp fitting has countersunk holes and is not recommended as a structural fixing. This fitting has no ability to join tubes.

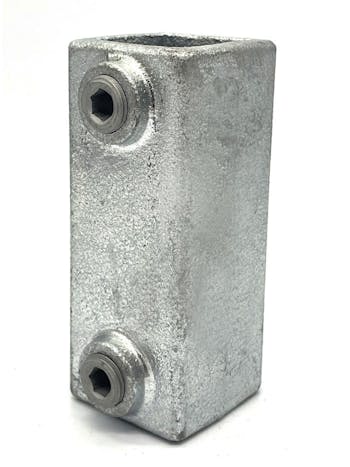

An inline external tube connector for joining two tubes of the same diameter.

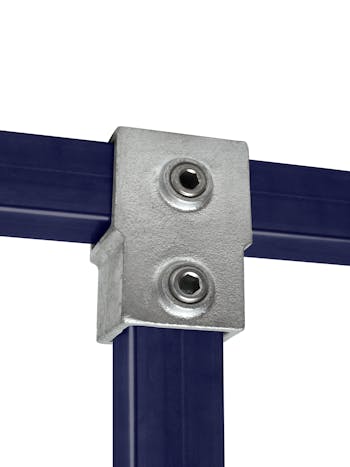

A 90 deg. tee connection between two tubes. Typical use is on straight and level guardrail to connect the vertical to the top rail or end/mid rail to the vertical. This Key Clamp fitting cannot be used to join tubes in the top of the short tee. For this the Key Clamp fitting 104 Long Tee should be used.

Often used for mounting boards practically flush with tubes. Fixing holes suit a wide range of common mechanical and chemical masonry anchors. The tube cannot be joined within the fitting.

Key Clamp Single male fitting with only 1 lug.

A Key Clamp 90 joint between a vertical and two horizontals. Typical use on straight and level guardrail to connect the mid/lower rails to the upright (Kee Klamp compatible 26). The vertical must remain continuous with cross rails cut.

Key Clamp fitting typical use is on straight and level guardrail for connecting the mid/lower rail to the vertical at a 90 corner.

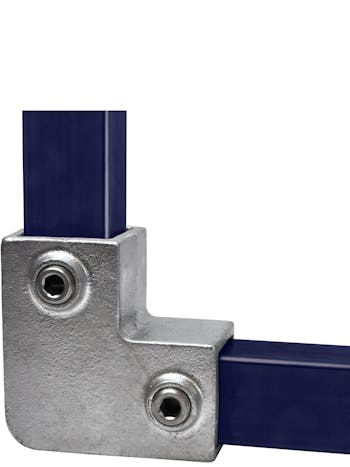

Key Clamp fitting typical use is to connect the end vertical to the top rail in straight and level guardrail. Can also be used to create a 90 tube bend.(Kee Klamp compatible 15).

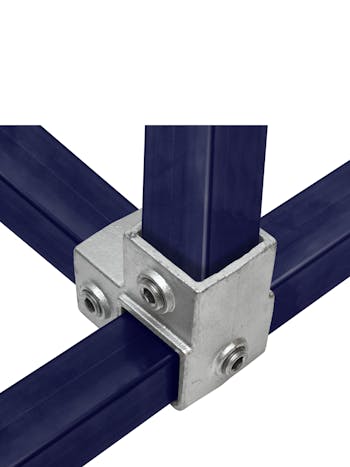

3 way tee used to join 3 tubes at 90° to each other with the vertical passing through the fitting. Typical use would be on structures such as market stall or play frames.

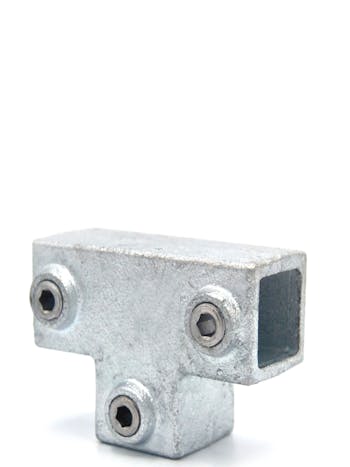

A 90 deg. tee connection between 2 tubes. Typical use is on straight and level guardrail to connect the vertical to the top rail. This Key Clamp fitting can be used to join tubes in the top of the twin grubscrew long tee.

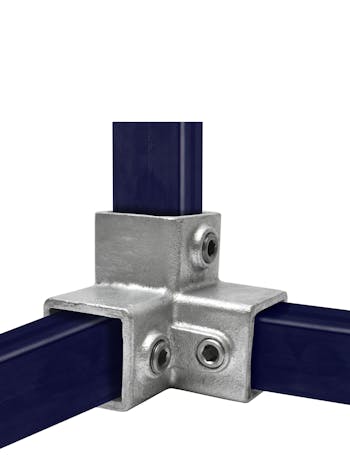

A 3 way enclosed 90 corner joint. Typical use is on straight and level guardrail at a 90 corner where an upright is in position. This Key Klamp fitting can also be used to create enclosed corner joints in other square structures such as benches etc.

With 4 countersunk holes, this fitting is ideal as a flange to terminate handrail to a wall or other similar application. This key clamp fitting may be used on structures where it is only required as a positional fixing.

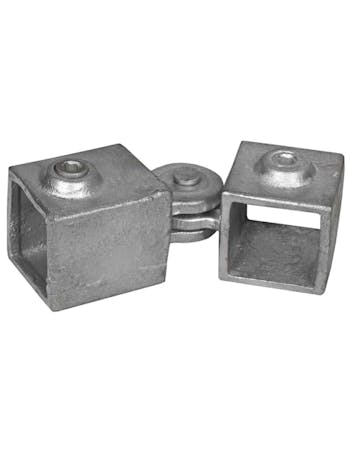

Key Clamp Complete single swivel. The swivel has a travel of approximately 85° from the horizontal in both vertical directions.(Kee Klamp compatible C50)

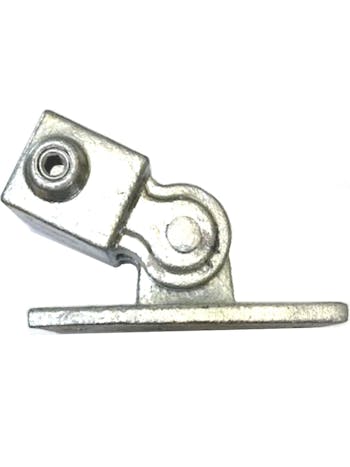

Complete locating swivel. Swivel has a travel of approximately 85 from the vertical in each direction.

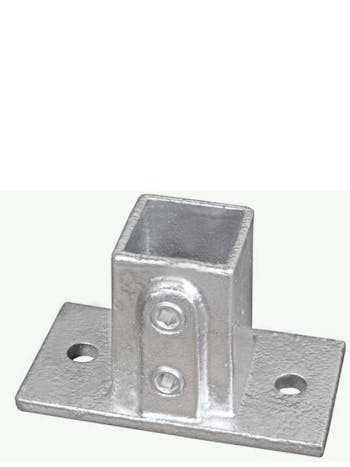

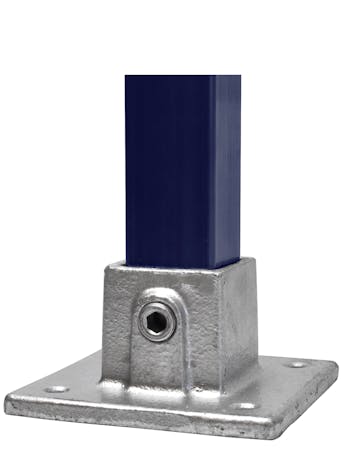

A structural base plate for all level aspects of vertical post support. This key clamp fitting when used as a base plate for guardrailing should always be positioned with the holes across the line of the guardrail to give maximum strength. The holes in the base plate are large enough to enable the use of mechanical or chemical anchor fixings.

40 x 40 square x 2mm thick - Galvanised Square Tube 750mm or cut to any lengths to suit requirements, additional haulage and cutting costs may apply - please contact us for further info.
