Handrail Tubular Standards
Special Base Standards for use on straight runs where special bases are required manufactured to meet specific requirements. Please download, print and complete the order enquiry form(below) to place your order.

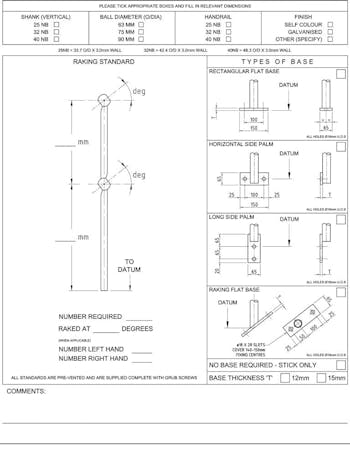

Raked Standards for use on raked runs such as stairs and ramps, manufactured to meet specific requirements. Please download, print and complete the order enquiry form(below) to place your order.

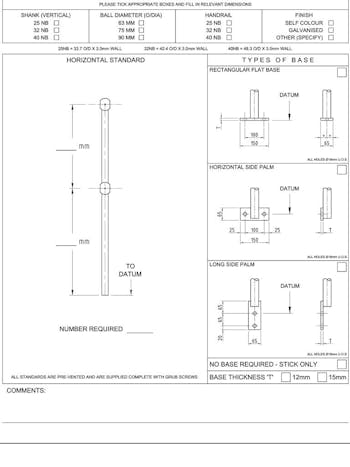

Tubular Standards Horizontal for use on straight runs available from stock or manufactured to meet specific requirements. Please download, print and complete the order enquiry form(below) to place your order.

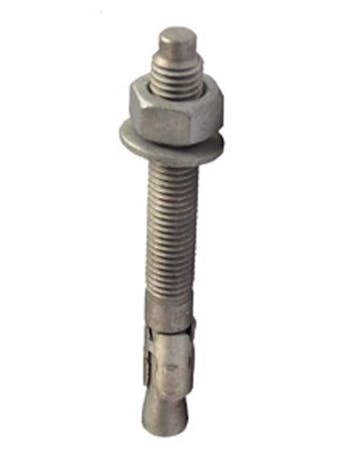

M16 x 110 Galvanised Through Bolts. Suitable for fixing down handrail tubular standards and also 132 pipeclamp base plate fittings in size 5 (60.3mm). Sold in pairs.
150 x 65 x 12mm handrail base plate with 18mm holes spaced 100mm apart. Self colour and ready for welding. Typically used for welding to handrail sticks to form a handrail standard post.

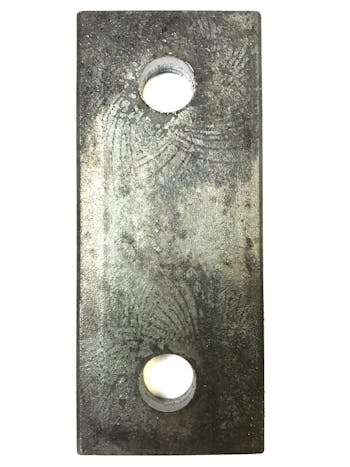

150 x 65 x 15mm handrail base plate with 18mm holes spaced 100mm apart. Self colour and ready for welding. Typically used for welding to handrail sticks to form a handrail standard post.
Base Plate 200x65x12 c/w 2 slotted holes & 1 vent holet. Self colour and ready for welding. Typically used for welding to handrail sticks to form a handrail standard post.
Straight Tubular Sticks type '25/63/25'(to suit 25nb / 33.7mm tube) for use on straight runs available from stock 1250mm(550x700) high overall no base. Alternatively these can be manufactured to meet specific requirements.
Straight Tubular Sticks type '32/75/32'(to suit 32nb / 42.4mm tube) for use on straight runs available from stock 1250mm(550x700) high overall no base. Alternatively these can be manufactured to meet specific requirements.

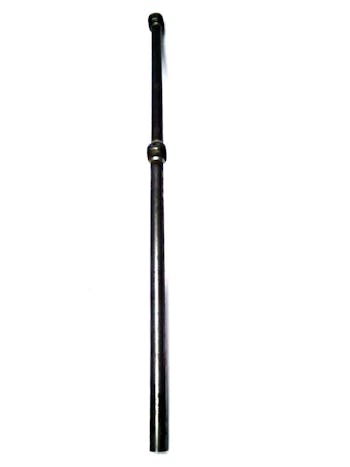

Straight Tubular Sticks type '40/90/40'(to suit 40nb / 48.3mm tube) for use on straight runs available from stock 1250mm(550x700) high overall no base. Alternatively these can be manufactured to meet specific requirements.
Tubular Standards straight type '25/63/25'(to suit 25nb / 33.7mm tube) for use on straight runs available from stock 1100mm(550x550) high overall with flat base. Alternatively these can be manufactured to meet specific requirements.
Tubular Standards straight type '25/63/25'(to suit 25nb / 33.7mm tube) for use on straight runs available from stock 1175mm(550x625) high overall with side palm base. Alternatively these can be manufactured to meet specific requirements.

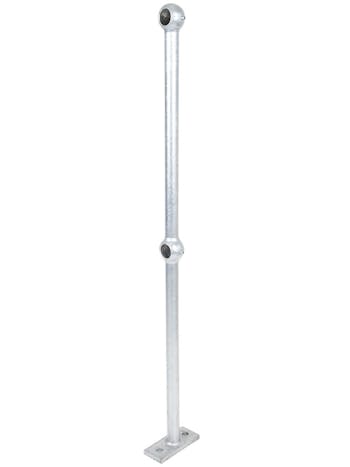

Tubular Standards straight type '32/75/32'(to suit 32nb / 42.4mm tube) for use on straight runs available from stock 1100mm(550x550) high overall with flat base. Alternatively these can be manufactured to meet specific requirements.

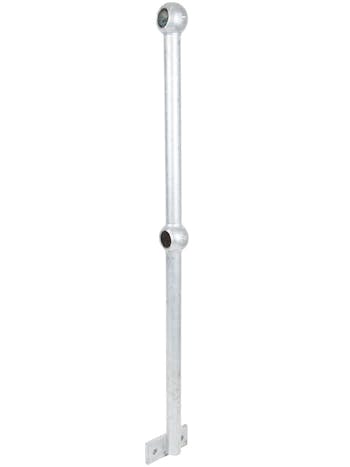

Tubular Standards straight type '32/75/32'(to suit 32nb / 42.4mm tube) for use on straight runs available from stock 1175mm(550x625) high overall with side palm base. Alternatively these can be manufactured to meet specific requirements.
Tubular Standards straight type '32/75/32'(to suit 32nb / 42.4mm tube) for use on straight runs available from stock 1175mm(550x625) or 1200mm(550x650) high overall with side palm base. Alternatively these can be manufactured to meet specific requirements.

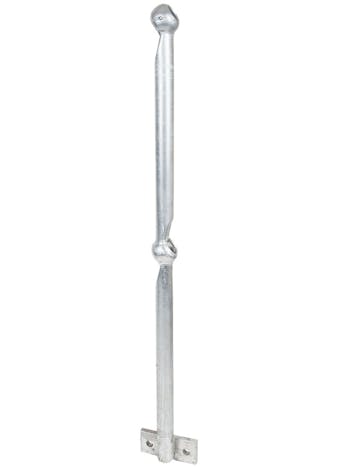

Tubular Standards 37deg. raked type '32/75/32'(to suit 32nb / 42.4mm tube) for use on raked runs available from stock 1000mm(450x550) high overall with side palm base. Alternatively these can be manufactured to meet specific requirements.
Tubular Standards 37deg. raked type '32/75/32'(to suit 32nb / 42.4mm tube) for use on raked runs available from stock 1000mm(450x550) high overall with side palm base. Alternatively these can be manufactured to meet specific requirements.
Tubular Standards straight type '40/90/40'(to suit 40nb / 48.3mm tube) for use on straight runs available from stock 1100mm(550x550) high overall with flat base. Alternatively these can be manufactured to meet specific requirements.
Tubular Standards straight type '40/90/40'(to suit 40nb / 48.3mm tube) for use on straight runs available from stock 1175mm(550x625) high overall with side palm base. Alternatively these can be manufactured to meet specific requirements.
Global Walkway Solutions Handrail Tubular Standards are used in a wide range of industries such as chemical and water treatment plants, offshore and petrochemical plants, factory mezzanines, racking and conveyor systems. They provide high performance safety and protection in difficult and dangerous environments particularly in circumstances where there is moving equipment or machinery present, or risk of falling from raised working areas.
Application
Tubular Handrail Standards are used in a wide range of industries for many applications such as; Mezzanines, Walkways, Platforms, Staircases, Ramps, Barriers, Racking and Conveyor Systems and many more applications.
Key Product Advantages
The tubular ball joint enables long lengths of tube to be passed through multiple handrail standards enabling quick and economical installation. Being extremely strong, stable, durable and versatile they provide high performance safety and protection in difficult and dangerous environments.
Our Handrail Standards have been independently UKAS Laboratory tested and satisfy the requirements of EN14122 and BS6180.
Availablity
Global Walkway offer a wide range of handrail tubular standards in a variety of sizes and finishes including; Self Colour, Galvanised, Painted, Powder/Plastic coated, Aluminium or Stainless Steel fabricated to customer specification or alternatively we can offer standard stock sizes or components for immediate despatch and customer fabrication/installation.
Please see our order enquiry sheets for options and sizes.
Our technical staff are available to discuss your project or applications with you.
